Name: Next-Generation Automated Checkweighers with Machine Vision Integration
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Pesadoras de Controle de Peso Automatizadas de Próxima Geração com Integração de Visão Computacional
Availability: InStock

Casa Produtos Verificador de Peso Automático

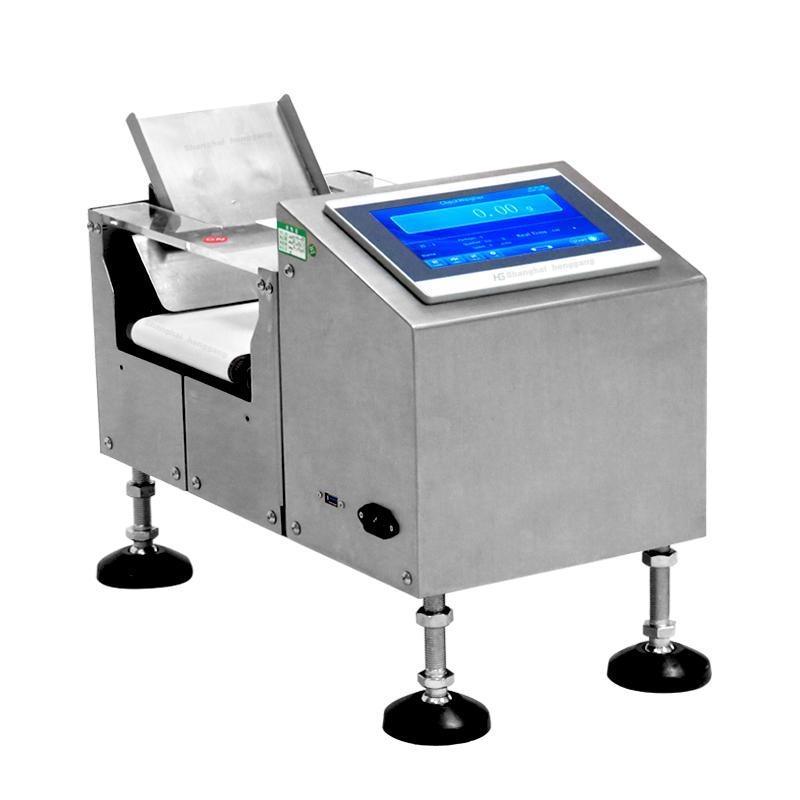

Next-Generation Automated Checkweighers with Machine Vision Integration

Detalhes do produto:

Lugar de origem:	CHINA
Número do modelo:	Pesadoras de Controle de Peso Automatizadas de Próxima Geração com Integração de Visão Computacional

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caron Box
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 set por mês

Contato

Descrição de produto detalhada

Product:	Next-Generation Automated Checkweighers with Machine Vision Integration	Minimum Weight:	0.1g – 1g (depending on model)
Maximum Weight:	5kg – 50kg (adjustable based on application)	Standard Deviation:	±0.1g to ±1g (depends on load cell & speed)
Legal-for-Trade (Optional):	OIML R51, NTEP, EC 60001	Max. Products/Min:	100 – 600 (depends on product size & conveyor speed)
Camera Resolution:	5MP – 12MP (high-speed industrial cameras)	Inspection Capabilities:	Barcode/QR reading, shape/size defects, color detection, label verification
Lighting System:	LED strobe lighting (adjustable wavelengths)	Software Compatibility:	Deep learning (AI-based defect detection), OpenCV, Halcon, Cognex VisionPro
Belt Width:	150mm – 600mm (customizable)	Belt Material:	PU, PVC, or stainless steel (food-grade options available)
Speed Adjustment:	Variable (0.1 – 1.5 m/s)	Type:	Pneumatic pusher, diverter arm, or drop flap
Response Time:	<50ms	Interface:	Ethernet, RS-232, USB, Wi-Fi (optional)
PLC Integration:	Siemens, Mitsubishi, Allen-Bradley	Software:	HMI touchscreen with cloud data logging (SQL, CSV export)
Voltage:	110V/220V AC, 50/60Hz	Power Consumption:	300W – 1.5kW (depending on configuration)
Operating Temperature:	0°C – 45°C	Protection Rating:	IP54 (standard), IP65/IP66 (washdown models for food/pharma)
Industry Standards:	FDA, CE, RoHS, GMP, ISO 9001	Standard Model:	1200mm × 800mm × 1000mm (custom lengths available)
Multi-Lane Sorting:	Up to 4 lanes for simultaneous sorting	AI-Based Weight Prediction:	Dynamic adjustment for variable product weights
Remote Monitoring:	IoT-enabled with real-time dashboard (AWS/Azure compatible)
Destacar:	automated checkweighers with machine vision , Mettler Toledo load cell checkweighers , next-generation automated weighing systems

Next-Generation Automated Checkweighers with Machine Vision Integration

System Overview

Modern automated checkweighers combine high-precision load cells with advanced machine vision to deliver unparalleled quality control. These hybrid systems provide:

Simultaneous weight + visual inspection (100% product verification)
AI-powered defect detection (0.01mm resolution)
Real-time process optimization (closed-loop feedback)
Multi-parameter quality gates (weight, dimensions, labels, defects)

Smart Inspection Features

3D Profilometry:
- Laser triangulation (10μm Z-axis resolution)
- Volume calculation for density verification
Surface Defect Detection:
- Scratch/contamination identification (0.05mm² sensitivity)
- Spectral analysis for material verification
Label Inspection:
- OCR/OCV at 300dpi resolution
- Barcode/QR code validation (ISO/IEC 15415 compliant)

Key Specifications

Attribute	Value
Minimum Weight	0.1g - 1g (depending on model)
Maximum Weight	5kg - 50kg (adjustable based on application)
Standard Deviation	±0.1g to ±1g (depends on load cell & speed)
Legal-for-Trade (Optional)	OIML R51, NTEP, EC 60001
Max. Products/Min	100 - 600 (depends on product size & conveyor speed)
Camera Resolution	5MP - 12MP (high-speed industrial cameras)
Inspection Capabilities	Barcode/QR reading, shape/size defects, color detection, label verification
Lighting System	LED strobe lighting (adjustable wavelengths)
Software Compatibility	Deep learning (AI-based defect detection), OpenCV, Halcon, Cognex VisionPro

etiqueta:

Pessoa de Contato: Mrs. Shirley

Telefone: +86-15851932889

Fax: 86-519-68781609

Outros Produtos

C35 AdvancedLine Checkweigher for Ultimate Production Efficiency

Produto: C35 AdvancedLine Verificador de Peso

Aplicação de inspeção: Controle de peso de verificação de peso

Indústria: Componentes metálicos, plásticos e eletrónicos para produtos químicos, alimentares e bebidas

Pesando precisão: a partir de ±0,01 g

Checkweigher Combinations with Vision Systems

Produto: Combinações de checkweigher com sistemas de visão

Câmeras: 2-8x CMOS industrial (5-20MP)

Óptica: Lentes telecêntricas (ampliação de 0,1-0,5x)

iluminação: Matrizes de LED com vários ângulos (RGB/W/UV/IR)

Industrial Weight Checkers Ensuring Product Compliance & Accuracy

Produto: Verificadores de peso industrial

Largura da correia: 150-800mm (ajustável)

Material da correia: PU, PVC ou metal detectável

Velocidade da correia: 5-120 m/min (servo controlado)

Checkweigher Integration in Packaging Lines

Produto: Checkweigher integração em linhas de embalagem

Largura do transportador: 200–1200mm

Sincronização de velocidade da correia: 5–120 m/min

Espaçamento de produtos: Min. 50mm entre os itens

Pharmaceutical-Grade Automated Checkweighers for cGMP Compliance

Produto: Checkweighers automatizados de grau farmacêutico

Alcance de pesagem: 0,1mg - 500g (personalizável de até 5 kg para a granel)

Legibilidade: 0,1 mg (modelos de micro-equilíbrio), 1mg (padrão)

Precisão: ± 0,1mg a ± 5mg (dependendo do modelo)
