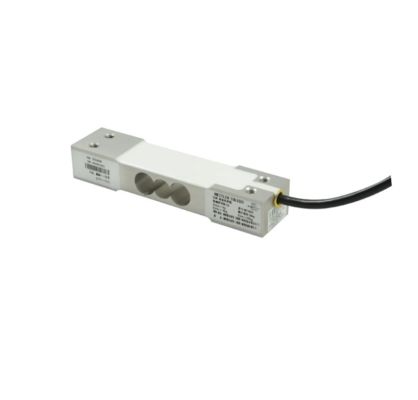

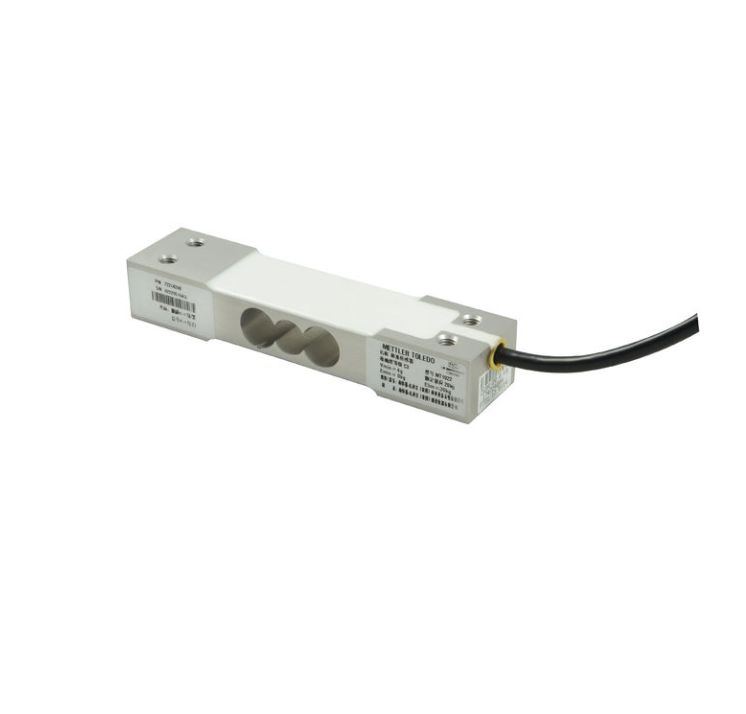

Name: Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Célula de carga MT1022-20kg 3m
Availability: InStock

Casa Produtos

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Célula de carga MT1022-20kg 3m

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caixa de carrinho
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 conjuntos por mês

Contato

Descrição de produto detalhada

Produto:	Mettler Toledo Load Cell	Capacidade Máxima:	20 kg (44 lb)
Materiais:	Alumínio, passivado	Metrologia:	NTEP III 5.000d OIML C3
Precisão:	Padrão	Classificação de Proteção:	IP67
Dimensões da Plataforma (CxL):	350 milímetros x 350 milímetros	Conectividade:	Análogo
Cabos:	PVC
Destacar:	MT1022 20kg load cell sensor , industrial scale load cell , digital scale load cell with warranty

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Product Overview

The MT1022 is a high-performance compression weigh module designed for industrial and digital scale applications. Its robust construction and precise measurement capabilities make it ideal for demanding weighing environments.

Key Features

Accuracy

High-performance single point load cell with off-center compensation to handle platform moments. Features standard OIML metrology approvals.

Reliable Strain Gage Technology

Constructed with premium aluminum materials and advanced strain gage technology for exceptional long-term durability.

Hazardous Area Usage

Includes ATEX Zone 1/21/2/22 approvals as standard - no additional options required for hazardous environments.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	44 lb (20 kg)
Material	Aluminum, passivated
Material No	72208511
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	PVC

Application Details

The compression weigh module is designed so that its top plate and base plate compress when weight is applied. It can be mounted directly to the ground, piers, or structural beams. Typically used in multiples under large platform scales including:

Truck and railroad track scales
Tank, hopper, and silo weighing systems

Available in capacities ranging from 3 kg to 300 tons for various industrial applications.
