Name: Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Célula de Carga MT1022-7kg 3m
Availability: InStock

Casa Produtos

Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Célula de Carga MT1022-7kg 3m

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caixa de carrinho
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 conjuntos por mês

Contato

Descrição de produto detalhada

Produto:	Mettler Toledo Load Cell	Capacidade Máxima:	22 lb (10 kg)
Material:	Alumínio, passivado	Metrologia:	NTEP III 5.000d OIML C3
Precisão:	Padrão	Classificação de Proteção:	IP67
Tamanho da plataforma (LxW):	350 milímetros x 350 milímetros	Conectividade:	Análogo
Cabos:	PVC
Destacar:	Strain Gauge Load Cell 10kg , MT1022 Load Cell for digital scales , Industrial Load Cell with 3m cable

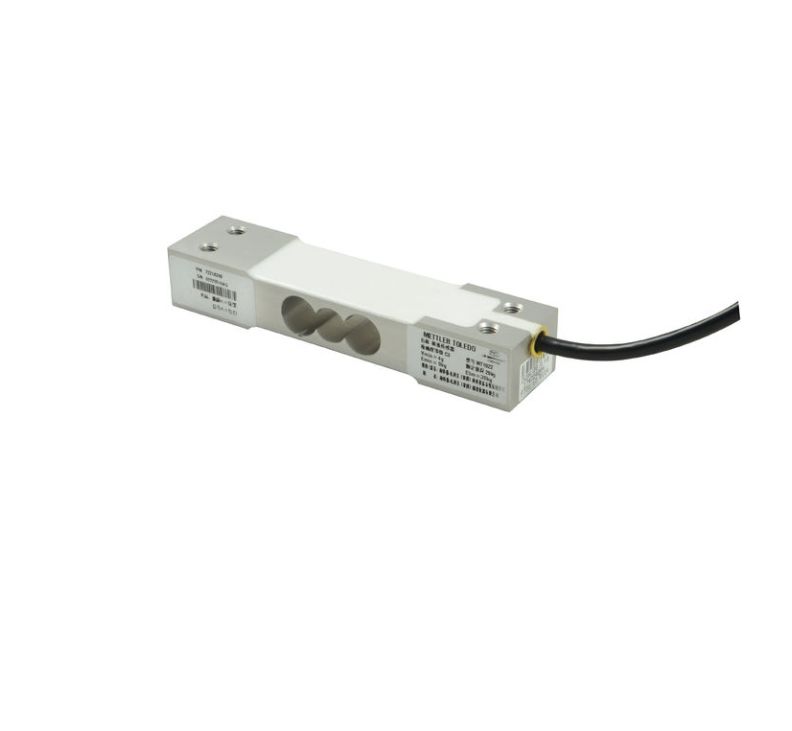

Strain Gauge Load Cell MT1022 10kg – 3m Cable for Industrial and Digital Scales

A high-performance compression weigh module designed for industrial and digital scale applications. The MT1022 load cell features off-center compensation for platform moments and meets stringent metrology standards.

Key Features

High-performance single point load cell with off-center compensation

Reliable strain gauge technology with durable aluminum construction

ATEX Zone 1/21/2/22 approvals included as standard

IP67 protection rating for harsh environments

Ideal for small platform applications in industrial weighing systems

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	PVC

Application Details

The MT1022 compression weigh module is designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. These modules are commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.
