Name: SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Câmara de carga SLP333D-IOL-500kg C6/6k
Availability: InStock

Casa Produtos

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Câmara de carga SLP333D-IOL-500kg C6/6k

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 CONJUNTO
Preço:	Negociável
Detalhes da embalagem:	Caixa de carrinho
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 conjuntos por mês

Contato

Descrição de produto detalhada

Produto:	Célula de carga Mettler Toledo	Capacidade máxima:	1.100 lb (500 kg)
Materiais:	Alumínio, passivado	metrologia:	NTEP III 10.000d OIML C6
Precisão:	padrão	Classificação de protecção:	IP67
Aprovação perigosa:	ATEX, FM	Criticalidade:	padrão
Tamanho da plataforma (LxW):	600 mm x 600 mm	Conectividade:	Integração
Destacar:	500kg digital load cell , IO-Link weighing sensor , C6 class load cell

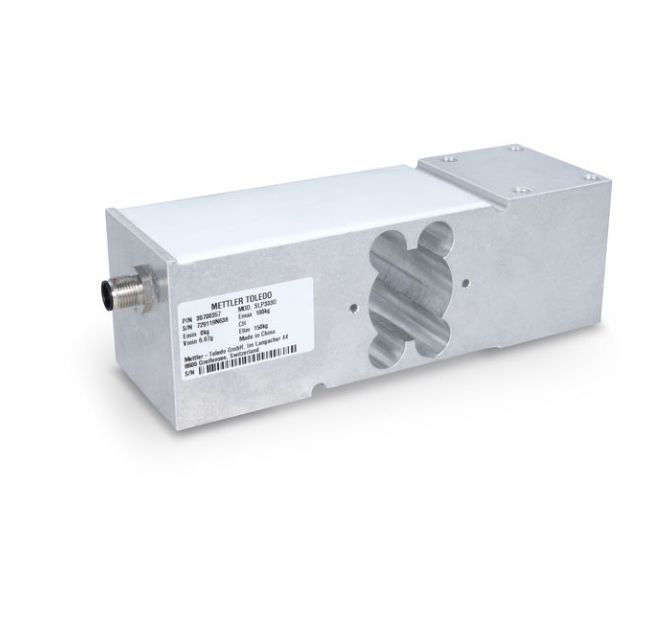

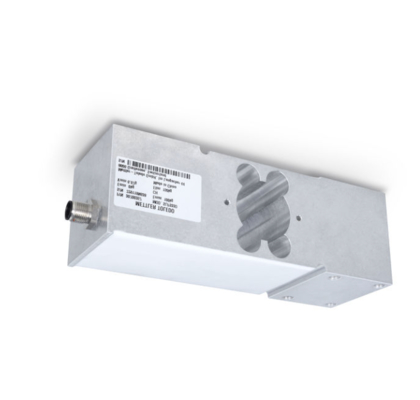

SLP333D-IOL Load Cell – 500kg C6/6k IO-Link Digital Weighing Sensor

A high-performance compression weigh module designed for industrial applications where direct PLC connectivity and precise measurement are required. The aluminum construction with passivated finish ensures durability in demanding environments.

Key Features

Integrated PLC connectivity: Direct connection to automation systems via IO-Link interface
Quick installation: Standard cables and connectors simplify setup with factory calibration
Smart5™ monitoring: Continuous condition monitoring with NAMUR NE 107 alarms
Robust construction: Aluminum housing with IP67 protection rating
Certified accuracy: NTEP III 10,000d and OIML C6 metrology standards

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,100 lb (500 kg)
Material	Aluminum, passivated
Metrology	NTEP III 10,000d OIML C6
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	600 mm x 600 mm

Application Details

This compression weigh module is designed for force measurement in industrial weighing applications. The top plate and base plate compress when weight is applied, making it ideal for direct installation on ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Industrial Automation Ready

The integrated IO-Link interface eliminates the need for additional electronic units, providing direct digital communication with PLC systems. This feature reduces system complexity while maintaining high measurement accuracy in automated industrial environments.
