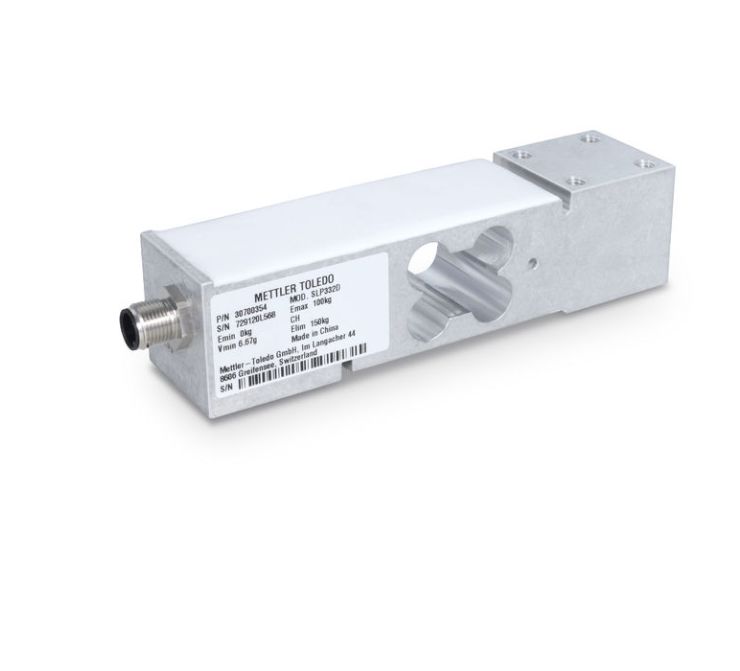

Name: SLP332D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Câmara de carga SLP332D-IOL-50kg C6/9k
Availability: InStock

Casa Produtos

SLP332D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Câmara de carga SLP332D-IOL-50kg C6/9k

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caixa de cartão
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 conjuntos por mês

Contato

Descrição de produto detalhada

Produto:	Célula de carga Mettler Toledo	Capacidade máxima:	50 kg
Material:	Alumínio, passivado	metrologia:	NTEP III 5.000d OIML C3
Precisão:	padrão	Classificação de protecção:	IP67
Aprovação perigosa:	ATEX, FM	Criticidade:	Padrão
Dimensões da Plataforma (CxL):	400 mm x 400 mm	Conectividade:	Integrado
Destacar:	50kg digital load cell , IO-Link weighing sensor , Mettler Toledo load cell

SLP332D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor

Key Features:

Direct PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
Factory calibrated for immediate startup

Product Description

The SLP332D-IOL is a compression weigh module designed for industrial weighing applications. When weight is applied, the top plate and base plate compress together, allowing direct attachment to ground, piers, or structural beams. Ideal for use in multiple configurations under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Attribute	Specification
Maximum Capacity	110 lb (50 kg)
Material	Aluminum, passivated
Metrology Certification	NTEP III 5,000d OIML C3
Protection Rating	IP67
Hazardous Area Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated IO-Link

Technical Advantages

Integrated PLC connectivity: Direct connection to automation systems without additional electronic units
Smart5™ technology: Continuous condition monitoring with NAMUR NE 107 alarms for increased machine uptime
Robust construction: Aluminum passivated material with IP67 protection for harsh environments
Precision measurement: High accuracy with NTEP III and OIML C3 certifications
