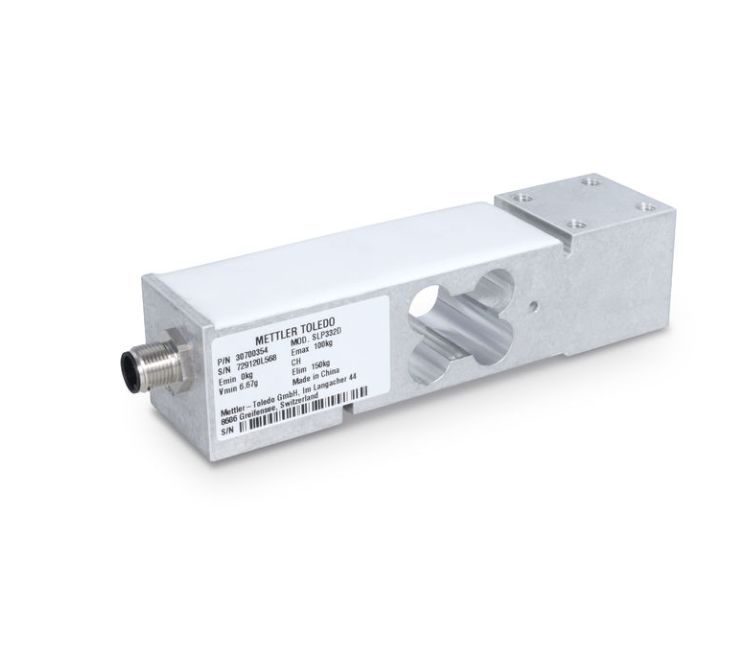

Name: 100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Célula de Carga SLP332D-IOL-100kg C3/5k
Availability: InStock

Casa Produtos

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Célula de Carga SLP332D-IOL-100kg C3/5k

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negociável
Detalhes da embalagem:	Caixa de carrinho
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 conjuntos por mês

Contato

Descrição de produto detalhada

Produto:	Mettler Toledo Load Cell	Capacidade Máxima:	220 lb (100 kg)
Material:	Alumínio, passivado	Metrologia:	NTEP III 5.000d OIML C3
Precisão:	Padrão	Classificação de protecção:	IP67
Aprovação para áreas perigosas:	ATEX, FM	Criticidade:	Padrão
Tamanho da plataforma (LxW):	400 mm x 400 mm	Conectividade:	Integrado
Destacar:	100kg IO-Link load cell , digital force sensor for industrial weighing , SLP332D-IOL load cell with warranty

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Key Features:

Direct PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
NTEP III 5,000d and OIML C3 certified
IP67 protection rating for harsh environments

Product Description

A high-performance compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated

Advanced Features

Integrated PLC Connectivity

The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, eliminating the need for additional electronic units.

Quick Installation

Standard cables and connectors reduce installation complexity. Factory calibration ensures immediate startup and operation.

Smart5™ Alarms and Condition Monitoring

Continuous condition monitoring with alarms according to NAMUR NE 107 standards results in higher machine uptime and increased productivity.
