Name: Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Módulo de pesagem SWC615 PM SS 90T S3A
Availability: InStock

Casa Produtos

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Detalhes do produto:

Lugar de origem:	China
Marca:	Mettler Toledo
Número do modelo:	Módulo de pesagem SWC615 PM SS 90T S3A

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 CONJUNTO
Preço:	Negociável
Detalhes da embalagem:	Caixa de cartão
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 ajustado pelo mês

Contato

Descrição de produto detalhada

Produto:	Célula de carga Mettler Toledo	Capacidade máxima:	198,000 lb (90.000 kg)
material:	Aço inoxidável, classe 304	metrologia:	OIML C3, NTEP IIIL 10,000
Célula de carga:	POWERCELL PDX	Precisão:	padrão
Classificação de protecção:	IP68/69k	Ambiente / Material:	Lavagem / Aço inoxidável
Aprovação perigosa:	Zona ATEX 2 / 22 UL Divisão 2	Criticalidade:	Monitorização da condição
Destacar:	90 ton heavy-duty load cell , SWC615 PM S3A load cell , stainless steel load cell module

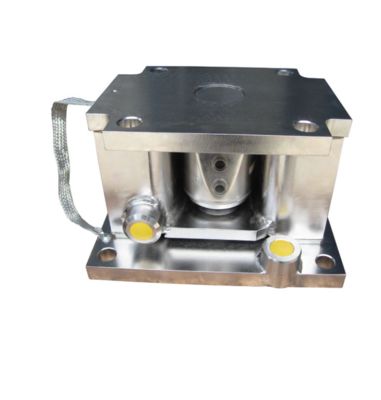

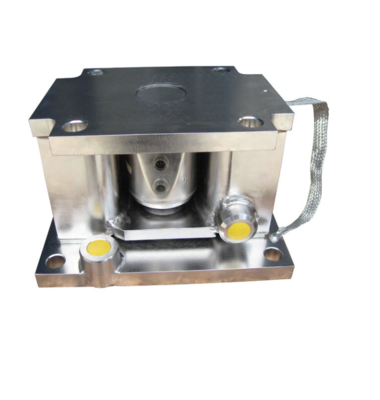

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Overview

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Application

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.

Enhanced Safety & Protection

Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.

Predictive Diagnostics

Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.

Technical Specifications

Material	Stainless steel, grade 304
Material Number	30057237
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology Certification	OIML C3, NTEP IIIL 10,000
