Name: 5 Ton 0970 Load Cell Module – C6 Class Precision Weighing Sensor with NOJ Feature
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo de pesagem 0970 5T C6 NOJ
Availability: InStock

Casa Produtos

5 Ton 0970 Load Cell Module – C6 Class Precision Weighing Sensor with NOJ Feature

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	Mettler Toledo
Número do modelo:	Modulo de pesagem 0970 5T C6 NOJ

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 CONJUNTO
Preço:	Negociável
Detalhes da embalagem:	Caixa de Caron
Tempo de entrega:	10-30 dias
Habilidade da fonte:	2000 ajustado pelo mês

Contato

Descrição de produto detalhada

Produto:	Célula de carga Mettler Toledo	Capacidade máxima:	11.230 lb (5.000 kg)
material:	WM 316L, LC 17-4PH	metrologia:	NTEP IIIL 10.000 OIML C6
Célula de carga:	5m (16,6ft) cabo RLC	Precisão:	Alta
Classificação de protecção:	IP68/69k	Ambiente / Material:	Lavar frequentemente / Higiênico
Aprovação para Áreas Perigosas:	ATEX, FM	Criticalidade:	padrão
Destacar:	5 ton load cell module , C6 class weighing sensor , NOJ feature load cell

5 Ton 0970 Load Cell Module – C6 Class Precision Weighing Sensor with NOJ Feature

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	11,230 lb (5,000 kg)
Material	WM 316L, LC 17-4PH
Metrology	NTEP IIIL 10,000 OIML C6
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM
Criticality	Standard

Product Description

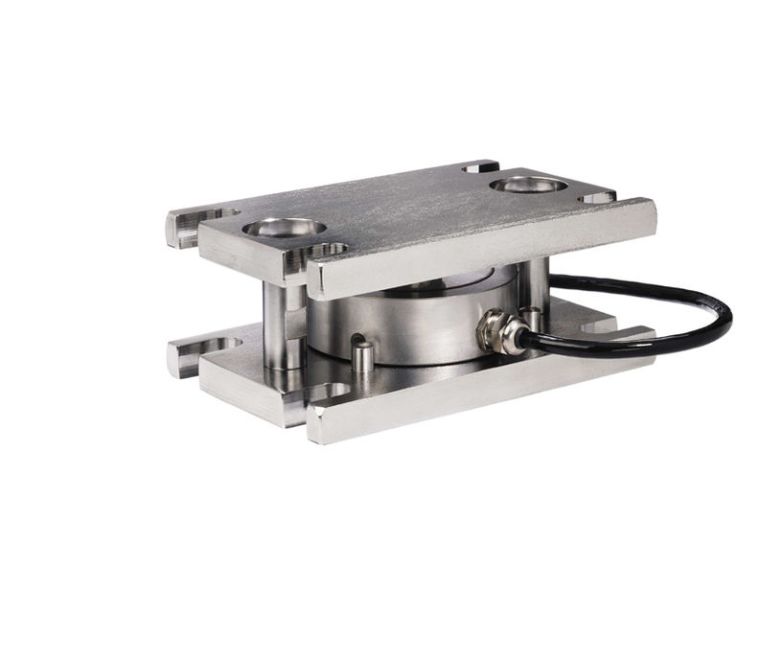

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Key Features

Low Profile, 316 SS for Corrosion Resistance

For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Safety & Protection

Features include 360° self-checking, dual lift-off & down-stops, hazardous approvals & IP68 stainless load cell. Peace of mind.
Ease of Installation

Product is light, low profile & aligned & rigidly locked for installation, with or without the load cell installed. Orientation is not critical.

Technical Specifications

Material	WM 316L, LC 17-4PH
Material No	61038936
Maximum Capacity	11,230 lb (5,000 kg)
Protection Rating	IP68
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX FM
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Metrology	NTEP IIIL 10,000 OIML C6
